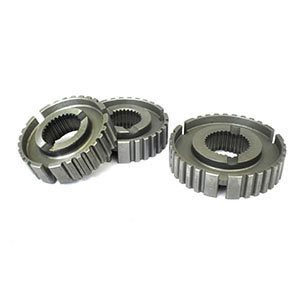

Factory CustomizedCar Automatic Transmission Powder Metal Sintered Synchronizer Hub

Brand: OEM
Certification: ISO9001/TS16949
Country of origin: China
Processing:Sintering - Powder Metallurgy
Material: Iron/copper/steel/OEM
Material standard: MPIF 35, DIN 30910, JIS Z2550
Surface treatment: High frequency quenching ,oil impregnation
Quality control: 100 % inspection
Application: Auto parts ,motorcycle parts ,machinery parts
Minimum order quantity: 5000pcs
Price: 2-5dollars
Payment method: TT/LC
Supply capacity: 100000PCS/month
Delivery period: 15-30days
standard packaging:customized/PE bag+carton+wooden pallet
Categories :
Contact Now
  • Description

Powder metallurgy automotive synchronizer hub is one of the important parts in the synchronizer, and its working speed is generally3500r/min transmission torque is 145n.m:
mechanical performance requirements: strength 394.2mpa hardness: (high frequency quenching)> HRA60, (integrated quenching HRC40:
technical requirements: density 6.8
Above, the accuracy requirements: the accuracy of the tooth part is around 8 grades,
the appearance requirements: no cracks, impurities, bumps and other defects, the surface quality is good.
